PENETRATION

Frac IQ™ 30 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 35 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 40 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
FracIQ™
GUN O.D. (in.) CHARGE PART NUMBER EXPLOSIVE WEIGHT (g) SHOT DENSITY (spf) PHASING ENTRY HOLE ROCK PENETRATION (in.) API 19B TARGETED PIPE EHD VARIATION DECENTRALIZED
3 ⅛ EC2-33A1672 16 6 spf 60 0.30 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2072 20 6 spf 60 0.35 7 5 ½ in. OD, 23# P-110 3.0%
3 ⅛ EC2-33A2372 23 6 spf 60 0.40 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2372-RX 23 6 spf 60 0.50 7 5 ½ in. OD, 23# P-110 3.0%
2 ⅞ EC2-28A1172 11 6 spf 60 0.35 7 4 ½ in. OD, 15.1# P-110 2.1%
2 ⅞ EC2-28A1672 16 6 spf 60 0.40 7 4 ½ in. OD, 15.1# P-110 2.7%

GEODynamics delivers a Limited Entry Perforating System for unconventional reservoirs. The FracIQ™ Perforating System provides constant casing hole sizes, regardless of decentralized position, casing size, weight and grade, for optimal pressure drop during Frac.  With a constant entry hole and penetration, each cluster can be treated more efficiently.  Subsequent stages and wells can then be further optimized for limited entry fracture stimulation.

FEATURES

  • Best in class standard deviation of entry hole diameter (EHD)
  • Improves perf cluster efficiency
  • Shape charge technology engineered for current unconventional casing size, weights, and grade
  • Customized entry hole selection on request
  • Rated to 22,500 psi and 350˚ F for 10 hours

APPLICATIONS

  • Limited entry perforating design
  • Unconventional Reservoirs
  • Conveyable on wireline, braided slickline, and tubing conveyed

BENEFITS

  • Constant entry hole size regardless of gun position or casing size and weight
  • Provides more control of perf friction and near wellbore tortuosity
  • Allows the operator to accurately determine the number of open perforations
  • Allows for efficient treatment of all perf clusters within the stage
  • Creates predictable and repeatable pressure diversion across 100% of the perforations

FracIQ™ 40 EHD is 0.40 inches, at all shot phasings.

Conventional 0.42” Perforating System, the EHD varies at all phasing from 0.42 to 0.30 inches.

FracIQ™ perforating system will provide superior perforation efficiency during fracture stimulation when compared to conventional perforators which traditionally exhibit a higher entry hole diameter variance across the shot phasings.

CONSTANT

ENTRY HOLE AND

*3-1/8" Charge performance is compatible in 4.5 inch 11.06-15.1# and  the 5.5 inch 17-23# P110 casing

*RDX equivalent available

US Patent No. US 9,725,993 Other Patents Pending

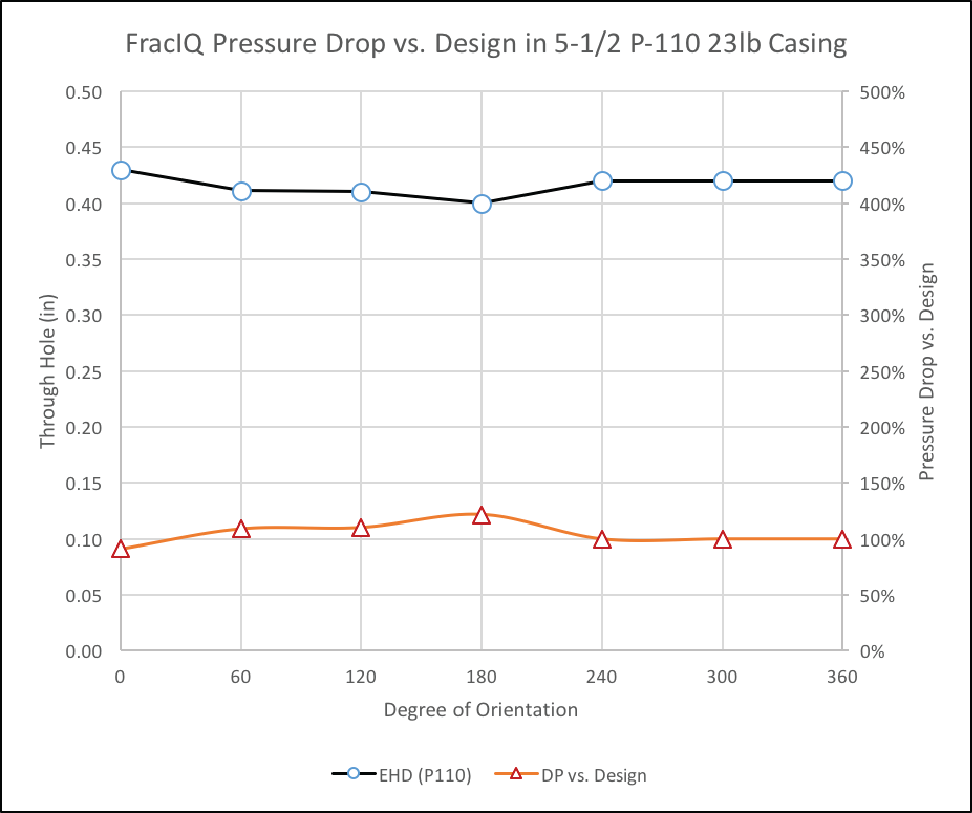

FracIQ 40 charges, pressure drop vs design, through hole, degree of orientation, 5 1/2, p-110, 23 lb casing

CONVENTIONAL DP CHARGES

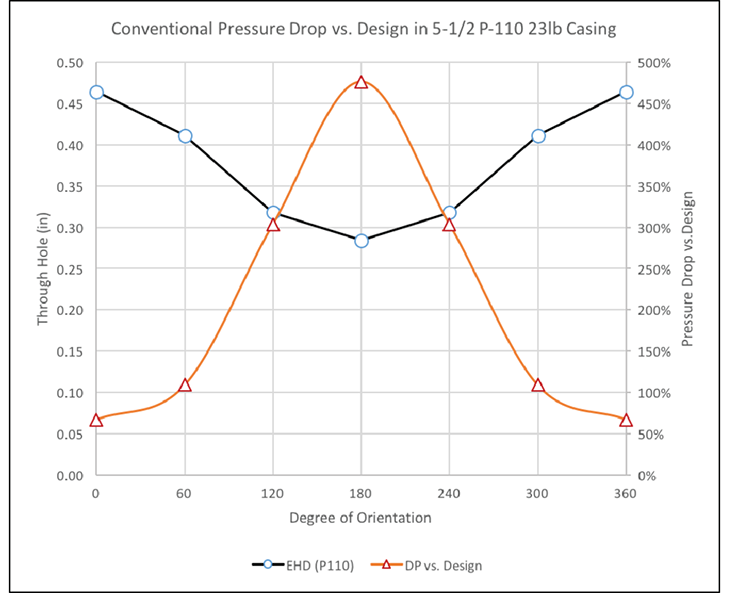

Conventional dp charges, pressure drop vs design, through hole, degree of orientation, 5 1/2, p-110, 23 lb casing

FracIQ 40

FracIQ™
Frac IQ™ 30 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 35 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 40 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
GUN O.D. (in.) CHARGE PART NUMBER EXPLOSIVE WEIGHT (g) SHOT DENSITY (spf) PHASING ENTRY HOLE ROCK PENETRATION (in.) API 19B TARGETED PIPE EHD VARIATION DECENTRALIZED
3 ⅛ EC2-33A1672 16 6 spf 60 0.30 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2072 20 6 spf 60 0.35 7 5 ½ in. OD, 23# P-110 3.0%
3 ⅛ EC2-33A2372 23 6 spf 60 0.40 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2372-RX 23 6 spf 60 0.50 7 5 ½ in. OD, 23# P-110 3.0%
2 ⅞ EC2-28A1172 11 6 spf 60 0.35 7 4 ½ in. OD, 15.1# P-110 2.1%
2 ⅞ EC2-28A1672 16 6 spf 60 0.40 7 4 ½ in. OD, 15.1# P-110 2.7%

Frac IQ™ 40 EHD is 0.40 inches, at all shot phasings.

Conventional 0.42” Perforating System, the EHD varies at all phasing from 0.42 to 0.30 inches.

Frac IQ™ perforating system will provide superior perforation efficiency during fracture stimulation when compared to conventional perforators which traditionally exhibit a higher entry hole diameter variance across the shot phasings.

FracIQ™
Frac IQ™ 30 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 35 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 40 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
GUN O.D. (in.) CHARGE PART NUMBER EXPLOSIVE WEIGHT (g) SHOT DENSITY (spf) PHASING ENTRY HOLE ROCK PENETRATION (in.) API 19B TARGETED PIPE EHD VARIATION DECENTRALIZED
3 ⅛ EC2-33A1672 16 6 spf 60 0.30 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2072 20 6 spf 60 0.35 7 5 ½ in. OD, 23# P-110 3.0%
3 ⅛ EC2-33A2372 23 6 spf 60 0.40 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2372-RX 23 6 spf 60 0.50 7 5 ½ in. OD, 23# P-110 3.0%
2 ⅞ EC2-28A1172 11 6 spf 60 0.35 7 4 ½ in. OD, 15.1# P-110 2.1%
2 ⅞ EC2-28A1672 16 6 spf 60 0.40 7 4 ½ in. OD, 15.1# P-110 2.7%
FracIQ™
Frac IQ™ 30 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 35 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 40 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings

CONSTANT

PENETRATION

ENTRY HOLE AND

FracIQ™

GEODynamics’ delivers a Limited Entry Perforating System for unconventional reservoirs. The FracIQ™ Perforating System provides constant casing hole sizes, regardless of decentralized position, casing size, weight and grade, for optimal pressure drop during Frac.  With a constant entry hole and penetration, each cluster can be treated more efficiently.  Subsequent stages and wells can then be further optimized for limited entry fracture stimulation.

FEATURES

  • Best in class standard deviation of entry hole diameter (EHD)
  • Improves perf cluster efficiency
  • Shape charge technology engineered for current unconventional casing size, weights, and grade
  • Customized entry hole selection on request
  • Rated to 22,500 psi and 350˚ F for 10 hours

BENEFITS

  • Uniform entry hole size regardless of gun position or casing size and weight
  • Provides more control of perf friction and near wellbore tortuosity
  • Allows the operator to accurately determine the number of open perforations
  • Allows for efficient treatment of all perf clusters within the stage
  • Reduces pressure drop across perfs by up to 30%

APPLICATIONS

  • Limited entry perforating design
  • Unconventional Reservoirs
  • Conveyable on wireline, braided slickline, and tubing conveyed
Frac IQ™ 30 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 35 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 40 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
GUN O.D. (in.) CHARGE PART NUMBER EXPLOSIVE WEIGHT (g) SHOT DENSITY (spf) PHASING ENTRY HOLE ROCK PENETRATION (in.) API 19B TARGETED PIPE EHD VARIATION DECENTRALIZED
3 ⅛ EC2-33A1672 16 HMX 6 spf 60 0.30 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2072 20 HMX 6 spf 60 0.35 7 5 ½ in. OD, 23# P-110 3.0%
3 ⅛ EC2-33A2372 23 HMX 6 spf 60 0.40 7 5 ½ in. OD, 23# P-110 3.8%
3 ⅛ EC2-33A2372-RX 23 HMX 6 spf 60 0.50 7 5 ½ in. OD, 23# P-110 3.0%
2 ⅞ EC2-28A1172 11 HMX 6 spf 60 0.35 7 4 ½ in. OD, 15.1# P-110 2.1%
2 ⅞ EC2-28A1672 16 HMX 6 spf 60 0.40 7 4 ½ in. OD, 15.1# P-110 2.7%
FracIQ™
Frac IQ™ 30 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 35 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
Frac IQ™ 40 equal hole size at 0˚, 60˚, 120˚, 180˚, 240˚, and 300˚ shot phasings
FracIQ™

CONSTANT

PENETRATION

ENTRY HOLE AND

CONSTANT

PENETRATION

ENTRY HOLE AND

FracIQ™

CONSTANT

PENETRATION

ENTRY HOLE AND

FracIQ™
